The Ultimate Guide to Steel Heat Treatment: Annealing, Normalizing, Quenching & Tempering

Introduction

Greetings from Kumagai Specialty Steel Co.,Ltd, a Japanese special steel supplier founded in 1913.

Steel heat treatment is sometimes described as “magic” because it can dramatically change the performance of steel without changing the shape of the component. In reality, it is controlled metallurgy: heating, holding, and cooling steel under carefully selected conditions to modify its internal microstructure.

The right heat treatment can unlock the full potential of steel by improving hardness, strength, toughness, wear resistance, machinability, and dimensional stability. However, the final result depends not only on the heat treatment method, but also on the steel grade, component size, geometry, and required performance.

This guide provides a practical overview of the four basic heat treatments and explains why material selection must be considered together with the heat treatment process.

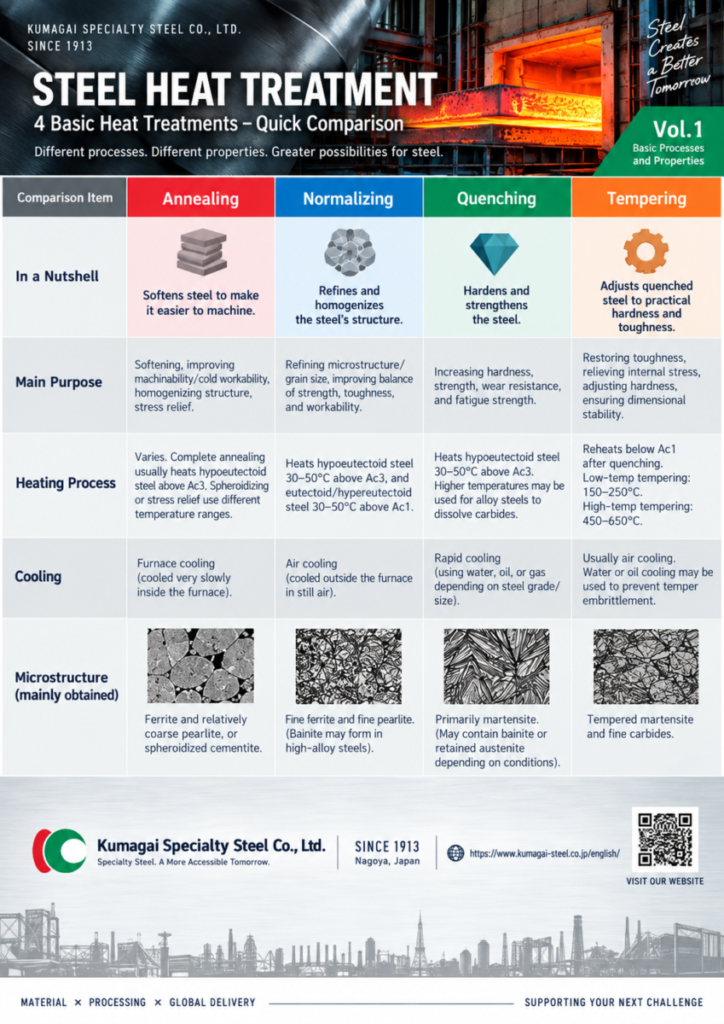

1.The Four Basic Heat Treatments: A Quick Comparison

Comparison Item (比較項目)	Annealing (焼なまし)	Normalizing (焼ならし)	Quenching (焼入れ)	Tempering (焼戻し)
In a Nutshell (一言で表すと)	Softens steel to make it easier to machine.	Refines and homogenizes the steel’s structure.	Hardens and strengthens the steel.	Adjusts quenched steel to practical hardness and toughness.
Main Purpose (主な目的)	Softening, improving machinability/cold workability, homogenizing structure, stress relief.	Refining microstructure/grain size, improving balance of strength, toughness, and workability.	Increasing hardness, strength, wear resistance, and fatigue strength.	Restoring toughness, relieving internal stress, adjusting hardness, ensuring dimensional stability.
Heating Process (加熱処理)	Varies. Complete annealing usually heats hypoeutectoid steel above Ac3. Spheroidizing or stress relief use different temperature ranges.	Heats hypoeutectoid steel 30-50℃ above Ac3, and eutectoid/hypereutectoid steel 30-50℃ above Ac1.	Heats hypoeutectoid steel 30-50℃ above Ac3. Higher temperatures may be used for alloy steels to dissolve carbides.	Reheats below Ac1 after quenching. Low-temp tempering: 150-250℃. High-temp tempering: 450-650℃.
Cooling (冷却)	Furnace cooling (cooled very slowly inside the furnace).	Air cooling (cooled outside the furnace in still air).	Rapid cooling (using water, oil, or gas depending on steel grade/size).	Usually air cooling. Water or oil cooling may be used to prevent temper embrittlement.
Microstructure (主に得られる組織)	Ferrite and relatively coarse pearlite, or spheroidized cementite.	Fine ferrite and fine pearlite. (Bainite may form in high-alloy steels).	Primarily Martensite. (May contain bainite or retained austenite depending on conditions).	Tempered martensite and fine carbides.

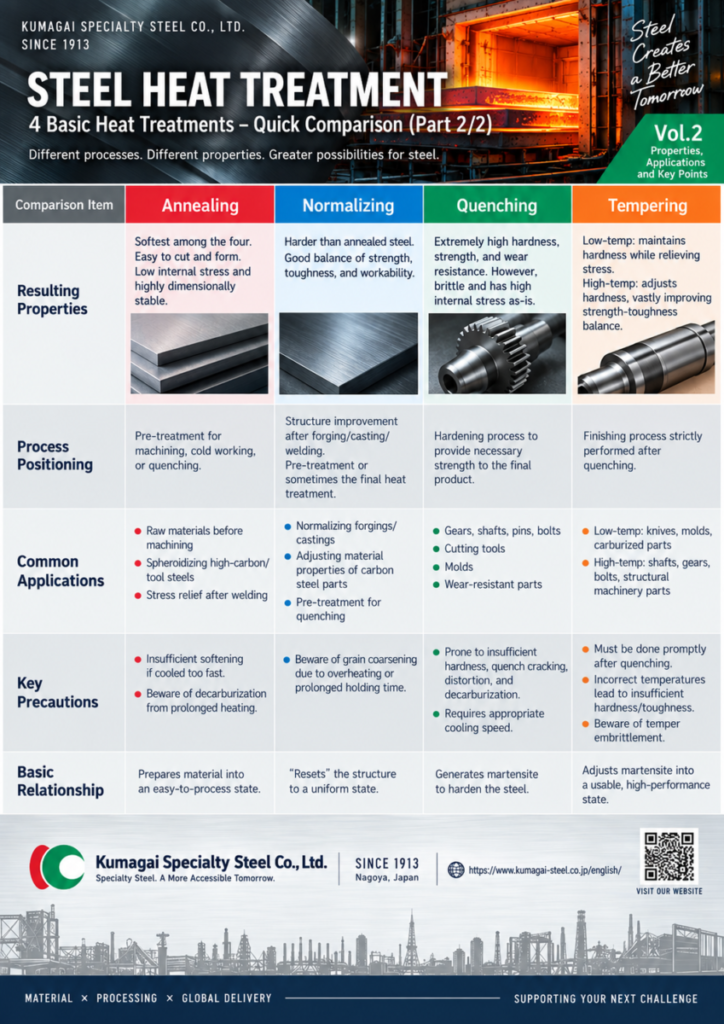

Resulting Properties (得られる性質)	Softest among the four. Easy to cut and form. Low internal stress and highly dimensionally stable.	Harder than annealed steel. Good balance of strength, toughness, and workability.	Extremely high hardness, strength, and wear resistance. However, brittle and has high internal stress as-is.	Low-temp: maintains hardness while relieving stress. High-temp: adjusts hardness, vastly improving strength-toughness balance.
Process Positioning (工程上の位置づけ)	Pre-treatment for machining, cold working, or quenching.	Structure improvement after forging/casting/welding. Pre-treatment or sometimes the final heat treatment.	Hardening process to provide necessary strength to the final product.	Finishing process strictly performed after quenching.
Common Applications (主な具体的用途)	Raw materials before machining, spheroidizing high-carbon/tool steels, stress relief after welding.	Normalizing forgings/castings, adjusting material properties of carbon steel parts, pre-treatment for quenching.	Gears, shafts, pins, bolts, cutting tools, molds, wear-resistant parts.	Low-temp: knives, molds, carburized parts. High-temp: shafts, gears, bolts, structural machinery parts.
Key Precautions (主な注意点)	Insufficient softening if cooled too fast. Beware of decarburization from prolonged heating.	Beware of grain coarsening due to overheating or prolonged holding time.	Prone to insufficient hardness, quench cracking, distortion, and decarburization. Requires appropriate cooling speed.	Must be done promptly after quenching. Incorrect temps lead to insufficient hardness/toughness. Beware of temper embrittlement.
Basic Relationship (基本的な関係)	Prepares material into an easy-to-process state.	“Resets” the structure to a uniform state.	Generates martensite to harden the steel.	Adjusts martensite into a usable, high-performance state.

Annealing: Make Steel Easier to Process

Annealing generally softens steel and improves machinability or cold workability. It can also reduce residual stress and produce a more uniform microstructure before subsequent machining or heat treatment.

Normalizing: Refine and Reset the Microstructure

Normalizing uses air cooling to produce a finer microstructure than conventional full annealing. It is commonly used to improve the structure of forged, cast, or welded components and to balance strength, toughness, and machinability.

Quenching: Create Hardness and Strength

Quenching rapidly cools austenitized steel to form a hard martensitic structure. It can significantly improve hardness, strength, wear resistance, and fatigue performance. However, quenched steel is generally brittle and contains high residual stress.

Tempering: Make Quenched Steel Practical

Tempering reheats quenched steel to reduce residual stress and restore toughness while retaining the required level of hardness. Quenching and tempering should therefore be considered as a combined process rather than as two unrelated treatments.

The actual heating temperature, holding time, and cooling method vary according to the steel grade, dimensions, geometry, equipment, and required properties.

---

Explore Our In-Depth Heat Treatment Guide

For a more detailed explanation of steel heat treatment, including microstructures, CCT diagrams, hardenability, steel grade selection, and common heat treatment defects, please visit our comprehensive Japanese-language guide.

The page includes Google-powered translation options for English, Korean, Vietnamese, Malay, and Traditional Chinese. Select your preferred language from the “Language” menu at the top of the page.

Please note that these translations are machine-generated. Some technical terms or expressions may not be translated with complete accuracy.

---

2.Material Selection and Heat Treatment

Not every steel responds to heat treatment in the same way.

A steel grade should not be selected only by its initial strength or hardness. Its carbon content, alloying elements, hardenability, section thickness, geometry, and intended heat treatment must also be considered.

S45C: A Common Medium-Carbon Steel

S45C is a widely used JIS medium-carbon steel. It can achieve high surface hardness through quenching and can provide a useful balance of strength and toughness after tempering.

However, S45C has relatively low hardenability. In thick components, the center may not cool quickly enough to achieve the same hardness as the surface. Water quenching may improve hardening, but it also increases the risk of distortion and cracking.

S45C is therefore often suitable for moderate-sized components, while the required hardness depth and component geometry must be carefully evaluated.

SCM440: Higher Hardenability for Larger Components

SCM440 is a JIS chromium-molybdenum alloy steel with higher hardenability than S45C. It can generally be hardened more uniformly through thicker sections and can often achieve the required hardness with oil quenching.

This makes SCM440 a strong candidate for components that require high strength, toughness, fatigue resistance, or more consistent properties between the surface and core.

What About Low-Carbon Steel?

Conventional low-carbon steels have limited potential for achieving high hardness through direct quenching because they do not contain enough carbon to form sufficiently hard martensite.

Depending on the application, normalizing may be used to improve the microstructure. Surface-hardening methods such as carburizing may also be considered when a hard surface and a tough core are required.

The key point is simple: the material, component design, and heat treatment route must be selected as one system. Steel grade designations from different countries should also not be treated as automatically interchangeable without comparing the applicable standards, chemical compositions, and mechanical properties.

3.Common Defects and How to Prevent Them

Heat treatment can improve steel performance, but inappropriate conditions may cause serious defects.

Quench Cracking

Quench cracking can occur when thermal stress from rapid cooling combines with transformation stress generated during martensite formation. Sharp corners, sudden changes in section thickness, and delayed tempering can increase the risk.

Typical countermeasures include:

• Selecting an appropriate quenching medium
• Replacing water quenching with oil quenching where technically suitable
• Avoiding sharp corners and abrupt thickness transitions
• Using staged cooling methods when appropriate
• Tempering promptly after quenching

Deformation and Dimensional Change

Bending, twisting, and dimensional variation may result from uneven heating or cooling, asymmetrical geometry, residual stress from previous machining, or improper positioning inside the furnace.

Possible countermeasures include:

• Improving part orientation during heating and cooling
• Using suitable fixtures or press quenching
• Applying stress-relief annealing before quenching
• Reviewing machining allowances and the process sequence
• Selecting a steel grade and cooling method appropriate for the component size

There is no universal heat treatment condition that works for every component. Material composition, thickness, geometry, target hardness, required toughness, and available equipment must all be evaluated together.

Consulting a specialist during the material-selection and process-planning stages can help prevent costly rework, inconsistent hardness, deformation, and unexpected component failure.
